前进料缝焊机 The current position:Home > Product

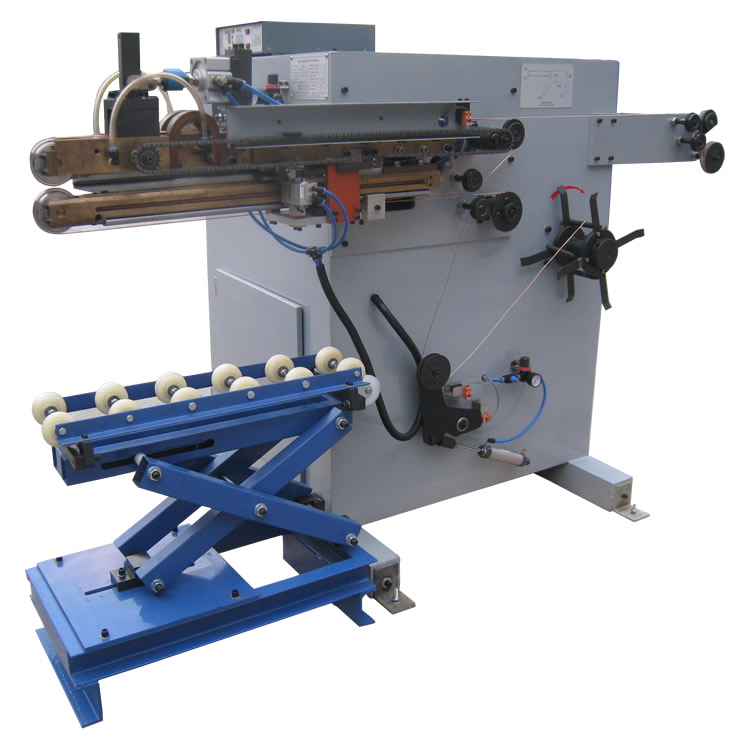

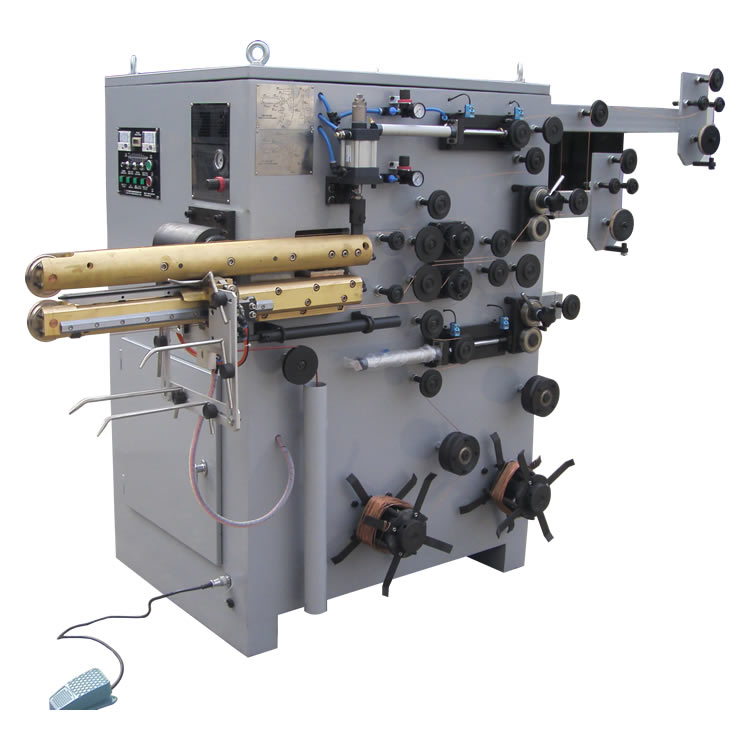

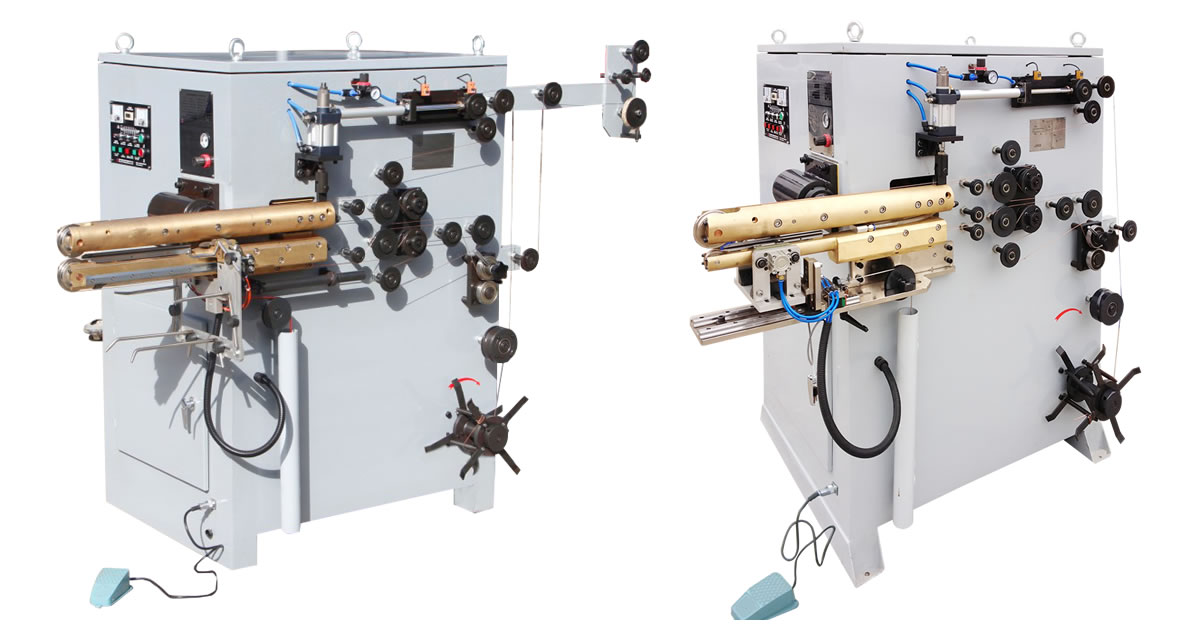

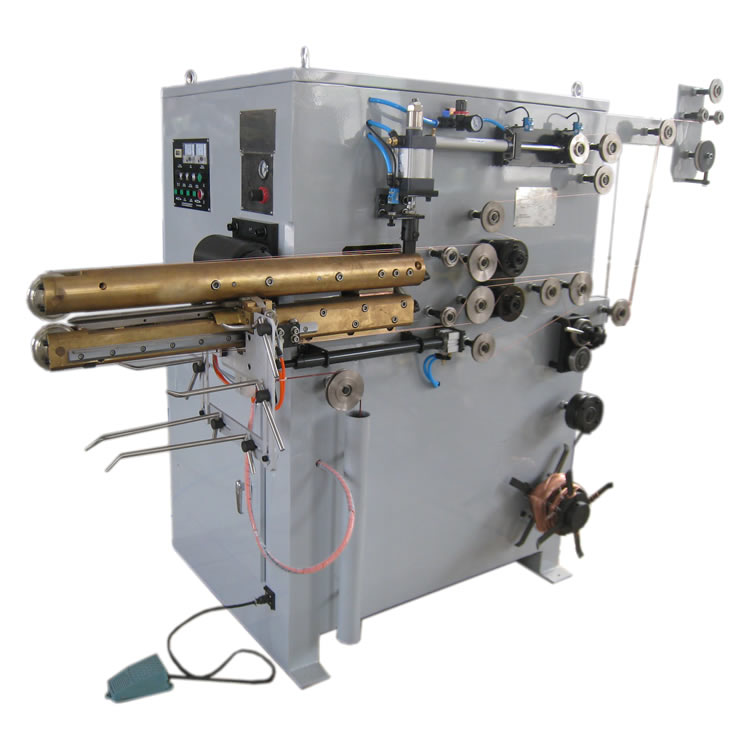

前进料罐身缝焊机

Model FN2000-A FN2000-B
Input Power 3N380/50Hz 10KVA
Welding Speed(m/min) 5-10
Produttivity(cans/min) 10-20
Diameter Range(mm) Φ105-Φ300 Φ52-Φ176
Welding Height(mm) ≤400(500) ≤250
Welding Material Tinplate / Cold Roller Sheet
Overlap(mm) 3-4 2-3
Welding Thickness(mm) 0.18-0.40
Net Weight(kg) 1000
Dimension(mm) 2200×1100×1600
